Tec4med Beacon Systems – Intelligent and easy data monitoring

Request Offer

Smart data tracking

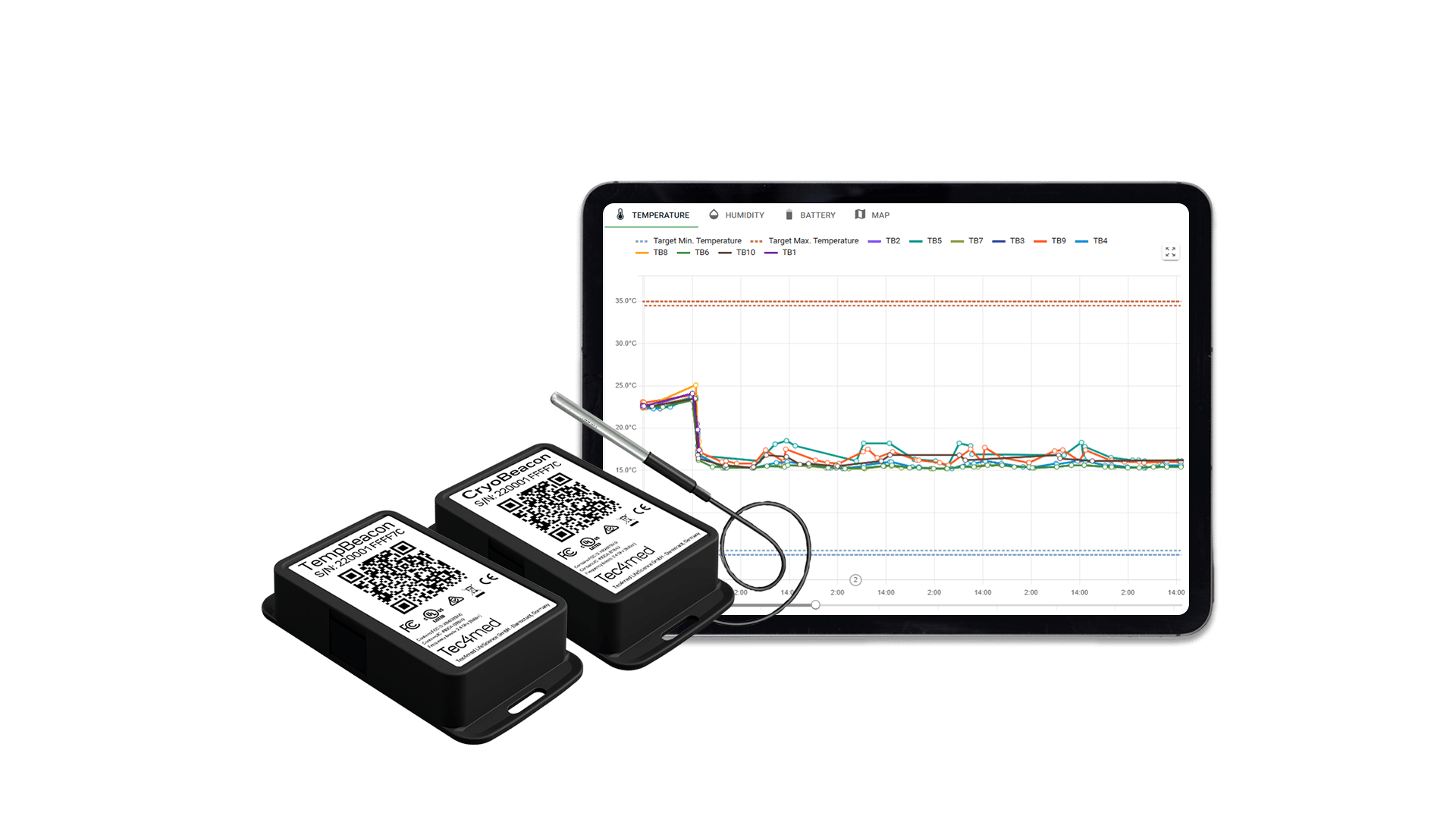

Tec4med’s Beacons record temperature, humidity, and shock. They contain temperature, humidity, and acceleration sensors. The Beacons are suitable for multiple uses during different transports.

Data is transmitted via Bluetooth Low Energy (BLE). Each beacon has a unique ID that is printed on the label and stored as a barcode. The QR code on the label can be scanned with the Tec4App. After the barcode is scanned with the smartphone, it connects to the beacon via BLE and automatically uploads all sensor data to the Tec4Cloud. With a simple browser login, the data can be viewed, automatic transport reports can be created or sent via email.

Tec4med Beacons also work in perfect combination with the SmartHub (LiPo), SmartHub (Alkaline) and SmartLock as a gateway. The SmartHub and SmartLock can handle multiple Beacons at the same time and automatically transfer all data of the surrounding Beacons to the Tec4Cloud.

TempBeacon

TempBeacon

Type

Single- & multi-use data logger

Location transfer

Via App or SmartHub

Connectivity

Bluetooth Low Energy (BLE) Long-Range

Sensors

Temperature, humidity

External sensors

-

Battery runtime

> 1 year

Recharge

-

Weight

47g

Size

80x45x16mm

Protection

IP 55

SmartBeacon

SmartBeacon

Type

Multi-use data logger

Location transfer

Via App or SmartHub

Connectivity

Bluetooth Low Energy (BLE) Long-Range

Sensors

Temperature, humidity, shock

External sensors

Socket for external digital probes

Battery runtime

> 1 year

Recharge

-

Weight

47g

Size

80x45x16mm

Protection

IP 55

CryoBeacon

CryoBeacon

Type

Multi-use data logger

Location transfer

Via App or SmartHub

Connectivity

Bluetooth Low Energy (BLE) Long-Range

Sensors

(Low-)temperaure, humidity

External sensors

Socket for external analogue probes (Pt-100)

Battery runtime

> 1 year

Recharge

-

Weight

47g + probe

Size

80x45x16mm

Protection

IP 55
